PDF FLY 10.0 - The Professional's Choice

pdffly-400x400x

PDF FLY combines all of our vector and bitmap modules into one easy to use product. Use it to convert PDF, PostScript and EPS files. Since 1995, professionals in engineering, technical writing and illustration have relied on PDF FLY. It saves time, improves quality and streamlines workflow - all in one powerful product. All formats support a variety of intelligent filter options ensuring a top-quality match with the original. Single or multiple files can be selected and will be converted in one run. For customers large and small across all industries, PDF FLY saves time while enabling new workflows.



Features in PDF FLY

  • Convert one file or multiple files at the same time
  • Convert all pages or specify a page rage
  • Intelligent object recognition
  • Rotate to any degree
  • Concatenates characters to form editable words and lines of text
  • Option to ignore text, images or paths during conversion
  • Specify minimum line width
  • Separates layers in CAD drawing based on colors
  • Dashed/dotted lines as segments
  • Easy Windows “Wizard” interface selects files, set options and converts in 3 easy steps
  • Outputs industry standard vector output formats which are scalable and editable at the text and object level including PDF, EPS, SVG, WMF, EMF, DXF, PS, HPGL, CGM, MIF
  • High-fidelity image formats for Web and office including JPEG, GIF, PNG, BMP and TIFF can be generated at ideal resolution settings for print or screen display
  • Options to map, reference, substitute or outline Type 1 and TrueType fonts to compensate for font mismatches between source and target systems
  • Batch tools (FLY Batch) and developer DLL available (FLY SDK). Linux and UNIX versions offer command line interface.

VECTOR FORMATS (Scalable and editable):

  • SVG for XML and the Web
  • CGM for tech pubs and engineering
  • MIF for FrameMaker
  • EPS and PostScript
  • DXF for CAD/CAM/CNC
  • HPGL for CAD plotting and viewing
  • WMF for Microsoft Office
  • EMF for Microsoft Office and Microsoft Windows printing

RASTER FORMATS:

  • TIFF for imaging, archiving, faxing, printing
  • GIF, PNG and JPEG for the Web or office
  • BMP for Microsoft Windows applications
  • ASCII for index, search and processing

ASCII FORMATS

  • ASCII text with placement
  • stripped ASCII text
  • ASCII preview (first few lines from file for summary)

Platforms

  • Runs on all Microsoft Windows (32-bit and 64-bit OS in 32-bit compatibility mode) with recent support added for Windows 10.
  • Linux and UNIX via command-line (Sun Solaris, HP-UX, IBM AIX)
  • Macintosh OS X (command-line only)
  • Supports all levels of PDF through the current Adobe PDF specification

Frequently Asked Questions about PDF FLY

If you can not easily find what you need in the FAQ, please contact us at support@visual-integrity.com.

PDF FLY

It’s easy to tell whether your PDF file is a raster or vector format by viewing it in Adobe Acrobat.  This is important since the two file types are converted differently. Vector PDF files are best transformed through data extraction. This is accurate and precise and involves minimal manual clean-up. Raster PDF files are traced since there is no data to extract. This is an approximation and requires operator involvement as well as manual clean-up. Visual Integrity is specialized in tools for vector conversion and will produce high-quality, accurate drawings from vector PDF input. If a raster PDF or scanned drawing is run through our software, we will turn the flat image into a tracing layer for manual work-up.

Test #1 – The Blue Test

Start by opening your PDF file with Acrobat or Acrobat Reader. Click anywhere on the drawing. If it turns blue, it’s a scanned drawing. Depending on the quality of the scan, you may have some success with a raster-to-vector tool. Alternatives are to manually redraw it or outsource it to be redrawn by a service bureau.

scanned drawing-unselected

A scanned drawing as it opens on-screen in Acrobat (It has not yet been selected).

scanned drawing - selected

Once you click anywhere on the scanned drawing, the entire drawing is selected and turns blue to signify this.



Test #2 – The Zoom Test

Open your PDF file with Acrobat or Acrobat Reader. Use the Magnifying Control to zoom in on a detailed section of the file. At 100-150%, it may be hard to tell the difference. Continue zooming until you are at a magnification greater than 400%.

When magnified, a scanned drawing will look jagged, noisy, blurry or dirty. If you are uncertain, magnify some more. The higher the resolution of the drawing, the more magnification it needs to degrade. Vector files will look perfect at any resolution.

When magnified, a scanned drawing will look jagged, noisy, blurry or dirty. If you are uncertain, magnify some more. The higher the resolution of the drawing, the more magnification it needs to degrade. Vector files will look perfect at any resolution.

2. Zoom

The section of the picture should be magnified on your screen and it should become apparent whether you have a vector or raster PDF file. The Vector PDF file will look clear and smooth at any resolution while the raster PDF will become dirtier and grainier the more it’s zoomed. In the example below, the section is enlarged 400%. Sometimes, it’s necessary to magnify the file more than 1000% when it’s a high-res scan to determine the file type.

Please click here if this helped you.
106 people found this helpful.


There are two types of PDF files – raster PDF and vector PDF. If your drawing will not convert, it is probably a scanned drawing saved as a raster PDF file. Unfortunately, there is no useful data in a raster PDF file for us to extract about the objects or text. When a drawing is scanned, it is reduced to a flat image, comparable to a snapshot or a photocopy. There’s nothing you can do except trace over it manually or with tracing software (raster-to-vector software). One way or another, you need to recreate it.

Our software is designed to convert vector PDF files. These files are created on computers using save, export, print-to-file, etc. These vector PDF files contain a rich data set and all the information we need to accurately extract the drawing and render it in a format Visio or AutoCAD, etc can digest.

For comparison sake, below is a snip of a raster PDF file at 500% where the characteristic “jagginess” or pixelation of raster PDF files can easily be seen. Below it is a snip of a vector PDF file which is remarkably smooth and clear even though it has also been zoomed to 500%. This visual method is a very easy and accurate way to determine if your PDF file is a raster or vector. Most people get both types of files so pdf2cad or pdf2picture may be useful for some of your files.

A raster PDF (scanned drawing) – jagged and grainy at 500% – you need raster-to-vector software to trace or recreate this or you’ll need to manually redraw it.

A sample vector PDF file at 500% – notice how smooth the lines are and how clear the text is. This type of file is best converted with vector-to-vector software like pdf2cad and pdf2picture.

Please click here if this helped you.
4 people found this helpful.


Using the converted PDF in Visio

Both pdf2picture and PDF FLY can create files that Visio can import using the native Windows vector graphic format (WMF). It’s also possible for Visio to open DXF files generated by pdf2cad although WMF will yield a better result in most instances. Download Tip Sheet: Using pdf2picture output (WMF) in Visio)

To use your PDF files in Visio, perform the following steps once you have generated your converted file using either pdf2picture or PDF FLY:

1.    Open the file using one of the methods below:

  • Choose Open, File and then select File Type:  Windows Metafile from the drop-down menu. It’s the last choice at the bottom of the “File Types” drop-down. Once you see your file on-screen, you are ready to move to Step #2.
  • Alternatively, if you want to import the file into an existing document or presentation, open that file and select Insert Picture…., From File and choose the file from your hard drive or network file system

2.    You should now see the converted drawing on your screen. Important! The drawing is imported as one grouped object and needs to be ungrouped if you wish to edit, remove or add parts of the drawing. To Ungroup your drawing, Select Shape, Grouping, Ungroup.

3.    When ungrouping Visio will highlight every discreet object in pink. In order to deselect everything, you need to click anywhere on the page outside of the drawing boundaries.

4.    Once the drawing is ungrouped and the objects are deselected, you may select whatever you want to change and it will appear with editing handles.

TIP! If you want to scale the drawing, make sure you “regroup” it by selecting Grouping, Group so that everything is scaled proportionately.

Contact Us if you have problems. The best way to get help is to send the file you are having trouble with along with any comments to support@visual-integrity.com. We’re happy to help!

Please click here if this helped you.
21 people found this helpful.


Sometimes there is no output file produced or it may seem as though  the software has quit working. This has to do with an invalid page range setting.

All of our products can convert one page, all pages or a page range. By default, they convert all pages. If you choose a page rage, you must reset it to all pages when done since the software remembers the last settings you used. If a conversion is attempted with an invalid page range, it will not produce a resulting file. It may seem as though it is not working. Once you go to “Options, Page” and adjust Page range to “All Pages””and re-attempt the conversion, you will produce a file.

page range options

Please click here if this helped you.
4 people found this helpful.


When you purchase a product from Visual Integrity, you are assigned a serial number. This code is is used along with some other unique data to license your software. It also acts as your customer number. The download that you receive upon purchase is pre-serialized and activated. All you need to do is double-click to install it. If you have an evaluation version on your system already, it will overwrite the files to unlock it. If you have questions, please contact support@visual-integrity.com.



Please click here if this helped you.
1 person found this helpful.




Yes. pdf2cad and PDF FLY can both generate DWG. In addition to the native AutoCAD format, both products can also produce DXF and HPGL.

Please click here if this helped you.
2 people found this helpful.


When a CAD drawing is saved as a PDF file, it still retains information about layers that can be extracted. When converting, pdf2cad looks at color attributes, or other definitions in the PDF file, to create layers. If the option to recognize layers is turned on, pdf2cad gathers all objects with same color and put them on one layer. If the PDF file has three colors, the resulting DXF file will have three layers. It is then easy in AutoCAD to turn off a complete layer. This setting can be found in the Options->DXF tab of PDF FLY or simply under Options in pdf2cad.

Please click here if this helped you.
4 people found this helpful.


The hatching in your PDF-file is done with a pattern fill. Patterns fills are not recognized or supported in the DXF format. Since it can not understand the hatch, pdf2cad maps it to a grey value which can be manually modified once in AutoCAD or whatever editing application you use.

Please click here if this helped you.
3 people found this helpful.


PDF Fly is a complete suite containing all of our input and output modules. It is used by technical writers and engineering professionals who need to convert a variety of formats with a high degree of accuracy. It  costs $295. PDF Fly converts PDF, PostScript and EPS into the following formats:

  • vector: WMF, EMF, SVG, CGM, EPS, PDF, PS, DXF, HPGL
  • image: TIFF, GIF, JPEG, PNG, BMP
  • text: stripped ASCII text, text with placement

pdf2cad is designed especially for CAD users and costs just $195. It is a subset of PDF FLY and converts only from PDF into DXF or HPGL. It contains all of the features and power of PDF FLY for these selected formats.

Please click here if this helped you.
0 people found this helpful.


If you want to edit the graphics in a PDF file in Microsoft Office or Visio, you’ll want to try pdf2picture. It operates in both vector and image mode and you can choose which is most appropriate at the time of conversion. Vector mode explodes the file into editable text and objects while image mode makes a high-fidelity copy of the file in an MS Office friendly format.

pdf2image is also available as a low cost option when you just need to use raster image formats. It is ideal for those who work on websites or printed publications like newsletters, brochures and customer bulletins.

To use the graphics produced by either pdf2image or pdf2picture in MS Office, you use Insert > Picture > From File… to add  the converted graphics into your document. If you used vector mode (Windows Metafile WMF/EMF), you can now edit text and graphic elements using the Office drawing tools.

Note: Neither pdf2image or pdf2picture are for converting Word documents or reports heavy in text.

Please click here if this helped you.
2 people found this helpful.


No, neither Acrobat nor GhostScript are required. All of our products are standalone tools, completely self-contained, and based on our powerful engine developed, improved and extended over almost two decades. Our products are not based on print drivers as brokers so the conversions are more pure and accurate. Everything that you need to run them on your desktop or to use them for you development is included in your delivery download.

Please click here if this helped you.
0 people found this helpful.

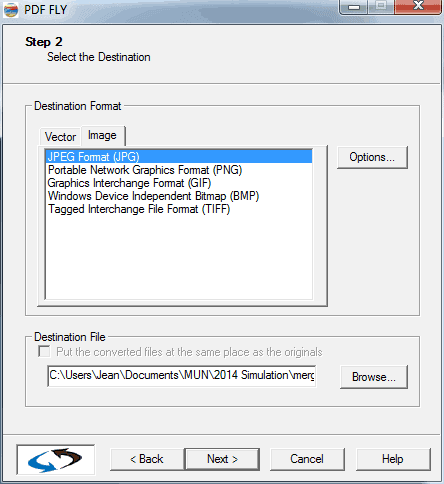

The software has been designed to be very easy to use and involves just a few simple steps:

  1. Select the PDF file you want to convert
  2. Change or customize settings by clicking on the Options button
  3. Change the name and location of the output file, if desired
  4. Convert!

Please click here if this helped you.
1 person found this helpful.


There is a Help file included with the software. Just click on the Help button found in the bottom right corner of the software dialog. A new screen will open, with a table of content for all the available topics. You can expand the outline to find the section on Conversion Options or search the index using the Find command. Depending on which product you are using, there will be General Options, Page Options, Size Options and Format Specific Options.

Please click here if this helped you.
0 people found this helpful.


Converting multiple files is also called batch mode and all of our products support it. To specify more than one file, use the “Add” button. Once you have specified your first files, you can remove files and add files until you have the batch of files together that you want to convert.

Please click here if this helped you.
0 people found this helpful.


When adding files, pdf2image, pdf2picture and pdf2cad will only display files with a .pdf extension. If the file you want to convert has a different extension, but you are sure that it is a PDF file, you should rename it to include a .pdf extension. PDF FLY is capable of digesting more input formats so it expects files with a .pdf, .ps, .eps or .prn extension.

Please click here if this helped you.
0 people found this helpful.


WMF, or Windows Metafile, is the original 16-bit metafile format. It is the native vector graphics format for the Microsoft Windows platform. It is also the standard format for scalable graphics in Microsoft Office and many other Windows applications. Even though it has been enhanced and extended as a 32-bit format (EMF -Enhanced Metafile), WMF is still the most widely used and supported metafile format on the Windows platform.

Please click here if this helped you.
22 people found this helpful.


Several vector formats such as WMF, CGM, DXF and HPGL do not support cropping. This is the act of cutting away and discarding the unnecessary portions of the picture such as extraneous fills and other elements. PDF and PostScript, both very robust and complete formats, do support it. To bridge the gap, Visual Integrity has developed a proprietary method to simulate cropping. When applied during conversion, the resulting file will appear cropped just like the original.

To apply it, select the “Emulate PS/PDF cropping” feature in the General tab of the Options menu.

Please click here if this helped you.
0 people found this helpful.


Although pdf2cad is not available for UNIX or Linux, the PDF to DXF conversion capability is part of PDF FLY which is available on Mac OS X, Sun Solaris, HP-UX, IBM AIX and Linux. The Linux version, developed on Red Hat, also runs successfully on other Linux implementations, such as FreeBSD and SuSe. For all of the UNIX/Linux platforms, the PDF to DXF functionality is accessed via a straightforward command line tool, offering the same core functionality as pdf2cad on Windows. For more information, visit www.pdf-fly.com.

Please click here if this helped you.
1 person found this helpful.


The DXF file format does not define physical dimensions using absolute measurements from a ruler. Instead it uses units which the user defines. When you create a PDF file from a CAD drawing, it is transformed to paper/print dimensions and the meaning of the original CAD units are lost but the xy relationship remains. As a result, pdf2cad can not restore the intended dimensions but it does preserve the scale. This means that you can calculate a scaling factor to apply during the conversion to achieve the size drawing you want. By default, pdf2cad uses 1mm(0,03937 inch) in the PDF = 1 unit in the DXF. You can change this under the DXF Options tab. You can also scale the DXF after import into your CAD application.

Tip: Sometimes pdf2cad delivers better precision and more accurate coordinates if you change one of the values in your pdf2cad.ini file. Please try setting the ctm_scale to 10.0 instead of 1.0 (default) in the pdf2cad.ini file. If this does not help, please send us the file to diagnose.

Please click here if this helped you.
5 people found this helpful.


If the PDF file contains characters, pdf2cad will convert them and map them as MTEXT objects in the DXF file. Unfortunately, when creating a PDF file from a CAD drawing, the text is not always retained. Sometimes it is “plotted” as pen strokes or turned into curves. When this happens, the character definition is lost. There is nothing that pdf2cad can do about this – it can only reproduce the curves (=SPLINES entities) in the DXF file. What looks like text in the original file may actually just be an object, comprised of a series of pen strokes that looks like a letter.

Tip: to see if the text in your PDF drawing is live and searchable, open the PDF file in Acrobat (Reader) and use the Text Select tool. If you cannot highlight any words, the text is already outlined to curves. If a PDF file contains searchable text, pdf2cad will reproduce it as MTEXT in the DXF file, preserving the fonts and styles.
Tip: To create a PDF with searchable text from AutoCAD, make sure to use TrueType fonts in the drawing and ensure that your printer driver is set to retain text as text instead of converting it to curves.  Text can be lost in either of these two steps in creating a PDF file. See how to create a PDF file with searchable text from CAD Digest.
Tip: if your PDF files contain non-Roman font text (such as Chinese, Arabic or Cyrillic), or if the text looks garbled in the DXF output, try using the “Convert characters to curves” option in the General tab of the Options menu of pdf2cad. This outlines the text during conversion to ensure WYSIWYG rendering (not editable).

Please click here if this helped you.
0 people found this helpful.


pdf2cad is designed to convert vector PDF files which are generated by other applications using print, export or save-as. They contain all the data about the drawing which is accurately extracted as editable CAD objects. Since scanned drawings (raster PDF) have been flattened and reduced to bitmap images, we can not reassemble them into objects. We do however convert them into a tracing layer which is referenced in the DXF file and supported in programs such as AutoCAD. If you need to create a vector file from this file, you can use the tracing layer as a guide for redrawing the file or use a different class of software called raster-to-vector to try to generate objects. In order to see or use the tracing layer, your target application must be able to open DXF files and display referenced images. Our conversion of a scanned PDF produces a blank DXF file and one or more image files in either the TIFF or JPEG format. They referenced images must be located in the same directory as the DXF file to be displayed. Otherwise, you will see a blank page.

Please click here if this helped you.
0 people found this helpful.


When you see a width dimension or what look like very fat lines in the drawing, you need to adjust the line width setting. It’s possible to turn off (reduce to zero) the line weight on the DXF Options tab or via Command Line. Change the value of the function zero_linewidth from 0 to 1 in the pdf2cad.ini, which is in the installation directory of pdf2cad and rerun the conversion. The installation directoryby default is C:Program FilesVisual Integritypdf2cad.

Please click here if this helped you.
0 people found this helpful.


When the PDF file was created, the dashed lines were created as small individual line segments. Because of this attribute in the PDF file, pdf2cad converts them as small line segments in the DXF file. pdf2cad does not yet have an option to recognize these segments. as a line with a certain dashed-line attribute.

Please click here if this helped you.
0 people found this helpful.


Not yet, but it is a frequent request and we have added it to the development schedule. We do not have a release date scheduled. Please email support@visual-integrity.com for an update on availability.

Please click here if this helped you.
2 people found this helpful.


This warning is to let you know that your PDF file uses non-standard fonts or font names. When this happens, you’ll probably notice that the text in your output file may look different than in the PDF when you open it in your target application. This not an error – just a reminder that some fine-tuning may be required, Please see the other entries on fonts and visit the Help system in the software for more detail.

If needed you can turn off the font messages, by adding the line: font_warnings(0) to the ini file of the application.

Please click here if this helped you.
3 people found this helpful.


Probably. The file format used by Microsoft Office does not embed fonts. Instead, it loads fonts based on reference when the file is opened. If the font specified does not reside on your system, the closest will be substituted. To add to the challenge, it expects the fonts on you system to use exactly the same name as the fonts in the file which is often not the case. Two different applications may define the exact same font with slightly different names. When you want to ensure a great match, you need to create a font mapping.

Please click here if this helped you.
1 person found this helpful.


In order add Adobe Type 1 fonts to the conversion engine, you need to follow four steps.

  1. First, you need to place the Adobe Type 1 PostScript fonts into the C:/Program Files/Visual Integrity/PDF FLY v7.0/fonts/etc directory. These font files have the extension .t1 (example: Frutiger-ExtraBlackCn.t1). Note: PDF FLY should be changed to the correct product name (such as pdf2picture).
  2. Second, you need to register the font with the engine by adding the font name at the end of the ../fonts/etc/fonts.dat file using notepad or another simple text editor.
  3. Third, you must also add the font name in the ../fonts/etc/dvrdef.dat file.

In case of pdf2image you can also add Windows True Type Fonts as described above.

Please click here if this helped you.
0 people found this helpful.

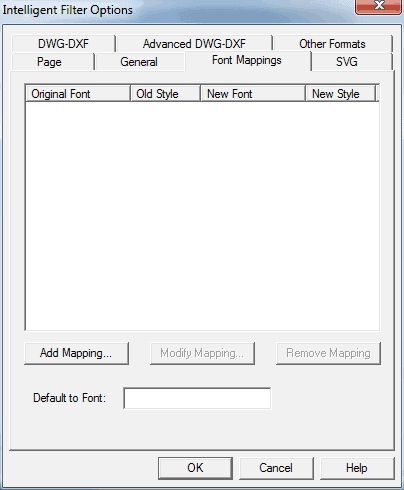

For fonts to appear correctly in a vector output file, the same font with the same naming convention must be on both systems. Sometimes, any mismatch can be resolved through font mapping. If you need support on adding fonts to your environment please contact support@visual-integrity.com. Custom font mapping is available as a service but is not covered by the standard Advantage Support Subscription.

By default the fontname used in the PostScript or PDF file is used also as fontname in the vector output file. Using the Font Mapping dialog you can change this by creating a mapping between the original fontname and the fontname you want to use in the vector output file.

Fonts are not embedded in the vector output formats. Most of the vector output formats do not support embedding of font data.

For SVG only we have hooked in the font embedding option for PDF files which has the embedded fonts. Please contact us if you want to know more about this option.

Please click here if this helped you.
0 people found this helpful.


After conversion, if you can not edit text, chances are that the text was already stored as graphics in the PDF original. It was probably converted to curves or plotted as pen strokes when the PDF file was created. It is no longer text, just vector curves that look like text. This often happens for example with PDF drawings are created from CAD, EDA or GIS applications as well as with print advertisements from a DTP-package to ensure font display accurately. Text is often converted to curves to ensure accurate print results and to protect against font incompatibilities. Once the text has been turned into curves, there is no way for pdf2picture to retrieve it as real text. If the text is still searchable in the PDF file, we can produce it as editable text in the conversion output.

Tip: To see if the text is searchable and convertable or not, open your PDF file in Acrobat Reader and try to “Select” some text. If you can mark it, you can convert it.

Please click here if this helped you.
1 person found this helpful.


Try deselecting the “Convert Characters to Strings” option in the General tab of the Options menu. Doing so will carefully place every character individually in the output instead of trying to recreate the actual words as objects. This option is turned on by default to combine individual characters into words and words into lines during conversion. This is a nice option to ease editing when it works but is dependent on the perfect alignment of inbound text. When turned off, every character will be placed precisely as it was in the original.

Please click here if this helped you.
0 people found this helpful.


If the characters are converting but not displaying properly, you likely have a font mapping issue. To comply with the licensing regulations of font suppliers, our software can not embed fonts in the vector output formats. Instead, we reference the fonts by their names. If the fonts, with the same names, are on the target PC, the file will open and display perfectly. If the same fonts are not on the PC that opens the file, which is much more likely, the text will not display properly. To complicate things, often, one font may go by several different names. Arial Bold, for example, may be referenced as “EHJPKB+Arial-Bold” in the original file. This font may be normal Arial Bold but the target application does not know it unless you tell it. This is known as font mapping. If the font is not mapped correctly, the closest font will be substituted. In this example, “EHJPKB_Arial-Bold” must be mapped as “Arial” with font style “Bold”. In order to learn more, please read the Tech Note: Font Mapping

In case of SVG or EMF as output format we support kerning. Please contact us if you need more information how to configure thus. Turning this option on could improve the WYSIWYG of the text strings.

Please click here if this helped you.
0 people found this helpful.


PNG is the native format of the MusicPad Manager so you would first need to use pdf2image to convert all your music to this format. Once you have generated all of the PNG’s, you should be able to import them directly by opening the MusicPad Manager application. Then just select File/Import.
MusicPad Pro expects the files that are imported to be 600×800. This can be set by choosing width = 600 pixels under the “Options” button during conversion in pdf2image.

If you have any trouble converting your music, please email a sample PDF file to support@pdf2image.com and we will return it to you in PNG format ready to import along with any special settings that you need to select.

Please click here if this helped you.
0 people found this helpful.


There are two important issues at play here.
First – make sure you choose the correct image format for your file type. If your PDF file is mostly text, you should choose GIF or PNG since they render images with few colors sharply. JPEG is better suited for photographic images which use many colors.

The second consideration is resolution or “dots per inch” (dpi). The resolution you choose determines the quality (and the size) of the output. Although a high resolution will yield a super-sharp image, it will also product a large file size which may impact performance. The rule of thumb is to use the lowest resolution which delivers the quality you need. Some guidelines are:

  • For screen display (web or office) – use 96dpi.
  • For images that will be printed on laser or inkjet printers – use 150 dpi
  • For images that will be printed professionally – use 300 dpi

If you want to adjust the resolution, simply increase the dpi setting in the Options menu.

Please click here if this helped you.
20 people found this helpful.


It is easy it is to create a PostScript file from virtually any application on a PC. Most PC’s are likely to have a PostScript printer driver configured in its printers settings. If not, you must Install a PostScript Printer Driver before going any further.

  1. Open your file within your application and then select “File…”, “Print”
  2. Choose your PostScript printer. Note that you can use any PostScript driver included with Microsoft Windows without having the actual printer since you will simply be printing to a file.
  3. Press “OK”  to print to file. Note that the PostScript tab under Properties should be set to Encapsulated PostScript (EPS) for best results.
  4. You will be prompted for a file name and location. If you do not assign .ps as the extension, the default in Windows will be .PRN. Both are valid input extensions.
  5. Open your Visual Integrity software and when prompted for a PostScript file to convert, go to the location chosen in Step 4 and select the new .ps or .prn file for conversion.

TIPS:

  • The extension does not matter – Some systems give printer files a default extension, like .prn or .plt. This does not matter. If the file has been created using a PostScript printer driven, the result will be a PostScript file that Visual Integrity software can convert.
  • Watch out for PCL: Most HP printers use a printer language called PCL. The default mode on HP PostScript printers is usually PCL. PCL can not be converted by TGC. Be sure that your HP printer is in PostScript mode to ensure a successful conversion.
  • Save directly as PostScript or EPS files – Many applications allow you to save your files as PS or EPS through their “Save as…” menu. A few even produce PostScript by default. This results in good input for our conversion engine.
  • Fonts – Try to use standard PostScript fonts like Helvetica and Times New Roman. Non-PostScript fonts, such as Type 1 fonts and TrueType fonts should be embedded so that the text data is available in the PostScript file. This gives our software the best chance to preserve the fonts during conversion.

Please click here if this helped you.
0 people found this helpful.


All products fully support the 35 standard PostScript fonts. They will always display properly upon conversion. Any other font needs to be available on the system which will be using the converted files. If it is available, the definition can be mapped so that it is specified in the conversion. Otherwise, the closest font from the following list will be substituted.

35 Standard PostScirpt fonts:

AvantGarde, NORMAL,
AvantGarde, ITALIC,
AvantGarde, BOLD,
AvantGarde, BOLDITALIC,
Bookman, NORMAL,
Bookman, ITALIC,
Bookman, BOLD,
Bookman, BOLDITALIC,
Courier, NORMAL,
Courier, ITALIC,
Courier, BOLD,
Courier, BOLDITALIC,
Helvetica, NORMAL,
Helvetica, ITALIC,
Helvetica, BOLD,
Helvetica, BOLDITALIC,
Helvetica-Narrow, NORMAL,
Helvetica-Narrow, ITALIC,
Helvetica-Narrow, BOLD,
Helvetica-Narrow, BOLDITALIC,
NewCenturySchlbk, NORMAL,
NewCenturySchlbk, ITALIC,
NewCenturySchlbk, BOLD,
NewCenturySchlbk, BOLDITALIC,
Palatino, NORMAL,
Palatino, ITALIC,
Palatino, BOLD,
Palatino, BOLDITALIC,
Symbol, NORMAL,
Times-Roman, NORMAL,
Times-Roman, ITALIC,
Times-Roman, BOLD,
Times-Roman, BOLDITALIC,
ZapfChancery, ITALIC,
ZapfDingbats, NORMAL

Please click here if this helped you.
0 people found this helpful.


  • The image formats used on web sites are JPEG (or JPG), PNG and GIF. JPEG is best for images with many colors such as photos. GIF is best for line art, illustrations and drawings with limited color. PNG is the most versatile and can be used quite broadly on web-sites.
  • The image formats used in documents follow a similar rule. GIF, TIFF and PNG are best for images with fewer colors and JPEG is used for images with many colors such as photos. The best test is to use pdf2image to convert to a few different formats and then view them both on-screen and in print to see which gives you the desired result.
  • It’s also important to determine what formats your application can import. If the program you want to use only accepts BMP, then you need to convert to this format, even if it produces larger files than PNG.

Please click here if this helped you.
2 people found this helpful.


  • If you are generating images for use on web sites, convert at 72 dpi (dots per inch) or 96 dpi. These settings match screen resolution pixel for pixel for the best match and sharpest display.
  • For general office printing, choose 150 dpi. This will generate a crisp image with the smallest file size.
  • For office publishing and high quality laser printing, choose 300 dpi. The files will be larger but the images will be very clear.
  • For professional printing, choose 300 dpi – 1200 dpi. It’s best to ask your printer who will recommend the best resolution to match his equipment.

Please click here if this helped you.
0 people found this helpful.


← Faqs

Tutorial: Using PDF FLY for Windows

This tutorial assumes that you have already installed PDF FLY on your Windows PC and that you can access it from the Start Menu, Desktop or Quick Launch Ribbon. Choose your preferred method and launch PDF FLY.

Launch PDF FLY and add the files to convert:

select-fly



Choose Output Format - Vector or Image

vector-fly

image-fly

Notice the Options button?

Often the defaults are perfect but if you find you need to tweak the settings, all options are covered below by mode (vector or image) . Once you are satisfied with the conversion settings, select "Next".

Conversion Summary

summary-fly

Convert the file! That’s it...

Review the summary and select "Convert"

final

The converted files will be in your file system, usually in the same folder as the original file. You can now open them in your application. At this point, you can choose New Conversion to perform more operations or Exit the application. If there are any warnings, check the Details button to review them. In almost all cases, these will be warnings about fonts which were in the original PDF file but are not on your PC, meaning that a substitute font will be used. Errors are very rare and if you encounter one, please report it to us along with the file.

Select Conversion Options

Page Settings - All Formats

page-fly

The Page Settings control options that apply to all files. All of the other option vary depending on whether you choose a vector or bitmap output format.

Crop Picture: Remove Margin: By default, the margins of the PDF file are used. This setting can adjust or remove white space.

Page Size: PDF FLY will automatically figure out the page size. If you want to force a standard or custom page size, select it or enter dimensions.

Convert Range: PDF FLY, by default, will convert all pages of a file. You can set a page range if you only want selected pages.

VECTOR MODE ​

 Vector Mode: General Settings

general-fly

Characters as Strings looks at your file and, based on placement and proximity, will combine individual characters into words and words into editable lines of text.

Characters as Curves will create a graphic match for the text ensuring a perfect match when fonts may be unknown or unavailable of the target system.

Rotate: You can also choose to rotate the file in either direction.

Scale Text: Enlarges or reduces the size of the text in the converted file.

Emulate PDF cropping: Several vector formats such as WMF, CGM, DXF and HPGL do not support cropping. This is the removal of unnecessary portions of the picture such as extraneous fills and other elements. Since PDF does support it, we have developed a proprietary method to simulate cropping which can be applied during conversion. Using this feature, the resulting file will look just like the original PDF.

Show Font Warning: If the same fonts defined in a PDF file are not installed on your computer, the converted drawing will not display properly. Font mapping is a way to ensure the closest match possible or to compensate for different font naming conventions on different systems.

Ignore paths, text images: Choose if you want to perform the conversion without certain elements.

Minimum line width: Defines the minimum line width for each vector object in mm. The default is 0.

Dashed and Dotted lines as segments: Recognizes dashed and dotted lines as lines with attributes. Without this feature on, a dashed line would be converted as a number of small line segments.

Fill option: Sometimes, white fills in a PDF file show up as black fills in a DXF file. If this is a problem, use this option to ignore white fills.

Emulate Line Joins and Line Ends:

 VECTOR MODE: Font Mapping

fonts-fly
Font Settings: If the characters are converting but not displaying properly, you likely have a font mapping issue. To comply with the licensing regulations of font suppliers, our software can not embed fonts in the vector output formats. Instead, we reference the fonts by their names. If the fonts on the target PC use the same name, the file will open and display perfectly. If the same fonts are not on the PC that opens the file, which is much more likely, the text will not display properly. To complicate things, often, one font may go by several different names. Arial Bold, for example, may be referenced as “EHJPKB+Arial-Bold” in the original file. This font may be normal Arial Bold but the target application does not know it unless you tell it. This is known as font mapping. If the font is not mapped correctly, the closest font will be substituted. In this example, “EHJPKB_Arial-Bold” must be mapped as “Arial” with font style “Bold”.

VECTOR MODE: DWG/DXF Settings

vector-dxf-fly

Scaling Factor:  CAD formats do not define physical dimensions using absolute measurements from a ruler. Instead it uses units which the user defines. These units are lost when the PDF is created, but the scale, the xy relationship, remains. You can set a scaling factor to apply during the conversion to achieve the size drawing you want or you can set the correct units when you open it in a CAD program. By default, PDF FLY uses 1mm(0,03937 inch) in the PDF = 1 unit in the DXF.

Precision Factor: Sometimes PDF FLY delivers better precision and more accurate coordinates if you change this setting from 10.0 instead of 1.0. If this does not help, please send us the file to diagnose.

Paths as Polylines/Polygons: The proprietary object recognition engine will identify the relationship between paths and, if contiguous, will render them as polylines or polygons.

Layers: By default, all objects are placed on the same layer. They can be separated by color, line width, PDF layers, spot colors as well as a combination of color and line width.

Zero line width: Remove 3D effects

Fill option: Sometimes, white fills in a PDF file show up as black fills in a DXF file. If this is a problem, use this option to ignore white fills.

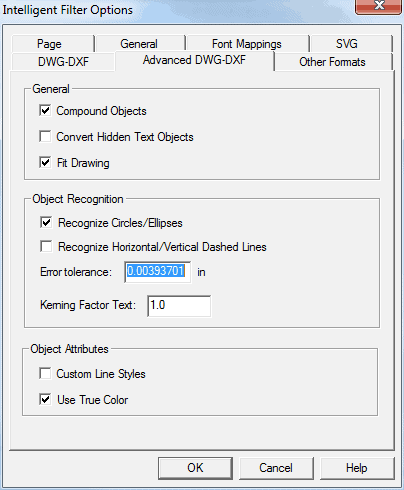

 VECTOR MODE: Advanced DWG/DXF Settings

vector-dxf-adv-fly

Compound Objects: The object recognition engine will try to turn as many objects as possible into grouped or compound objects. If you want all graphics to remain as singular objects, turn this off.

Convert Hidden Text Objects: Often, PDF files will contain text that is transparent or hidden under an object. This option will extract all text, including hidden text.

Fit Drawing: This option ensures that the converted drawing will be entirely visible when opened up in a CAD program.

Recognize Circles/Ellipses: The proprietary object recognition engine identifies closed polygons and circular paths and converts them to circles and ellipses.

Recognize Horizontal/Vertical Dashed Lines: Instead of being broken down into a number of smaller line segments, dashed and dotted lines can be treated as singular objects with attributes such as line type.

Error Tolerance: This is a tolerance level set for recognition of CAD objects. If one point on the closed polyline is outside of the specified range, it will remain a polyline.

Kerning Factor: This setting controls the space between letters or characters. Normally, one should not need to worry about kerning but if you do want to change the character spacing you can do it with a kerning factor. Note that a display issue with kerning may also be due to a font mismatch and can best be solved with a font mapping.

Custom Line Styles: Line styles in the PDF can be mapped to custom line styles in the DXF file.

Use True Color:

VECTOR MODE: SVG Settings

svg-pic

SVG Parser: Choose your SVG Parser. If you do not know, then it is probably the default Adobe SVG parser.

Scaling: Choose the size that you want the SVG files to be relative to the original.

Embed Raster Images: Normally, raster images are saved separately and are referenced by the SVG file. This option allows you to save the file with the images embedded.

Embed Fonts: In most formats, it is not possible to embed fonts because of license restrictions. It is permitted in SVG so you can always make sure you have an exact match in the file. Note this will make the file size larger so choose to do this carefully.

Kerning: If the kerning is not ideal upon conversion, you can try to select this option. If this does not product satisfactory results, please contact us and we will work with you optimize the kerning for your process.

VECTOR MODE: Other Vector Format Settings

other-fly

Level Target Application: CGM has many levels and profiles. For best results, you should choose the level that best suits your application. Level 1 conforms to the original 1987 standard, Level 2 is fairly rare, Level 3 is very prevalent, based on the 1993 spec and is most used by technical writers and mechanical engineers, Level 4 is based on the 1999 standard.

Enable Metric Scaling: Scaling can be done using virtual device coordinates or metric. Choose here and add your coordinates if you choose VDC.

WMF/EMF Dither Images: Images can be dithered to a 256 color image

EMF Kerning: This setting controls the space between letters or characters. Normally, one should not need to worry about kerning but if you do want to change the character spacing you can do it with a kerning factor. Note that a display problem with kerning may be due to a font mismatch also which could be resolved through font mapping.

Multipage MIF File: When selected, the PDF file will be converted into a multipage MIF file. Otherwise, each page will be converted separately.

IMAGE MODE

IMAGE MODE: Image Settings

image-fly-image

Dots per Inch: Renders the image with a defined resolution in dots per inch. Some useful settings are 600 or 1200 dpi for offset printing, 300 dpi for high-quality office printing, 150 dpi for everyday office printing, 96 or 72 dpi for Web images.

Width or Height of Image: You can force the size based on target dimensions. In order to maintain aspect ratio (scale), you must enter a number in either width or height and PDF FLY will calculate the correct dimension to ensure perfect scaling.

Image Quality Factor: 100 will give the highest quality image. Lowering this number will decrease file size which may be desirable. A few tests to see the trade-off are recommended if file size is a constraint.

Color Model: Custom or Naive

Rotation: Rotate right or rotate left during conversion.



IMAGE MODE: Format Settings

image-fly-formats

Color-Depth: Set the color depth for the image. Supports 1-bit, 8-bit and 24-bit for BMP, 8-bit and 24-bit for PNG and 1-bit b&w, 1-bit b&w FAX, 8-bit colormap and 24-bit color for TIFF.

GIF Transparency: Option to make background color (default is white) transparent for Web graphics.

Multipage TIFF: If selected, a multipage TIFF file will be created. otherwise, a separate TIFF file is created for each page.

CMYK: If selected, a CMYK version of JPEG or TIFF files will be created.

"We use PDF FLY to convert service manuals from EPS to SVG for the web. We have it scripted to save time. Works great!" Honda America Tech Pubs.

honda-circle

Technical writers at American Honda Motor Company use PDF FLY to convert service manuals from EPS to SVG for web display in a scalable vector format. The software is used on desktops as well as scripted via command-line to automate batch conversions.

TOP
